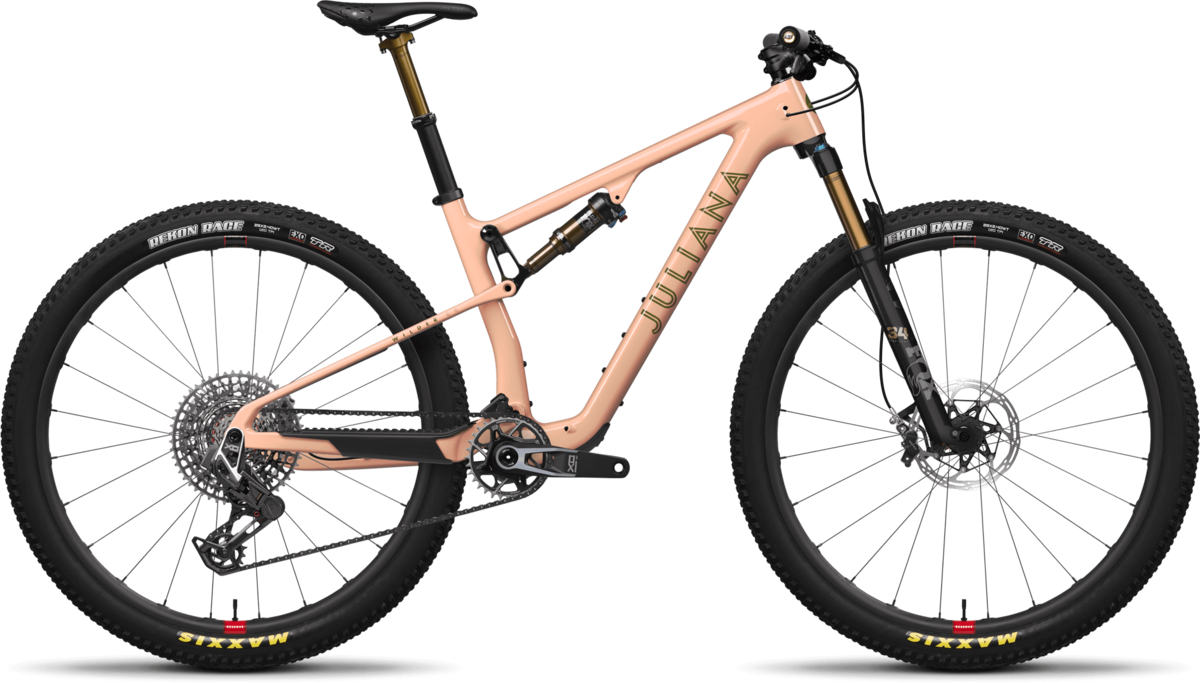

Juliana Wilder C GX AXS TR RSV

Juliana Wilder C GX AXS TR RSV
$7,699.00
Color: Gloss Palisade Peach
Size: Select size
Please select options Unavailable

Details

Go Wilder.

Saving weight means little without retaining an appropriate level of stiffness and responsiveness too. So we’ve taken all the acceleration and out-of-the-saddle sprint qualities of a carbon XC race rocket and fused them with a rear-end that still rails corners like a hardcore trail bike.

This unique XC-trail attitude is also reflected in the geometry. The head tube angle (67.1 degrees) and reach (425mm) are a little steeper and shorter than a Joplin to meet the demands of aggressive climbing, yet the Wilder’s seat tube angle is a touch slacker and the chainstays a little longer than a Joplin too in order to retain that familiar Juliana confidence on descents. And talking of chainstays, each chainstay length is specific to the individual frame size; meaning riders of every height enjoy the same handling and performance no matter what.

Beyond the details, there are some bigger features that amplify this XC wild child’s abilities. Rapid rolling 29-inch wheels are paired with a 120mm fork to tame the feral lines and smooth the sketchiest of passing maneuvers. There’s even room for two water bottles within the front triangle for bigger training and racing days.

Design Details:

XC focused, downhill ready
115mm of Superlight suspension, and 120mm of front travel.

Light Carbon Frame
At 1857g (w/o shock) size medium the Wilder is the lightest bike we've ever made.

Two Water Bottles
Two water bottle mounts inside the front triangle to support those all-day pedal fests.

Built for climbing
The head tube angle (67.1 degrees) and reach (425mm) is a little steeper and shorter than a Joplin to meet the demands of aggressive climbing.

Geometry to match
Each chainstay length is specific to the individual frame size; meaning riders of every height enjoy the same handling and performance no matter what.

Reserve 28|XC wheels
Replaces the Reserve 25 model, better bead retention, Reserve’s lightest wheelset: Lighter, wider, shallower. Meant for newer Maxxis Widetrail 2.4" XC tires which are popular for elite racers.

Sizes:
Frame SizeSML
Reach (mm) 412.3 437.8 457.5
Stack (mm) 587.4 597 606.5
Head Tube Angle 67.1º 67.1º 67.1º
Seat Tube Length (mm) 405 430 470
Front Center (mm) 695 723.7 747.4
BB Height (mm) 339.9 339.7 339.6
BB Drop (mm) 32.6 32.8 32.9
Wheelbase (mm) 1125.8 1157 1183.2
Rear Center (mm) 430.8 433.3 435.8
Head Tube Length (mm) 90 100 110
Top Tube Length (mm) 568.4 597.3 621.4
Seat Tube Angle 75.1º 75º 74.9º
Standover Height (mm) 743.5 746.4 745.4
Sizes:
Frame SizeRider Height (in)Rider Height (cm)
Small 5'1" - 5'5" 155 - 165
Medium 5'5" - 5'9" 165 - 175
Large 5'9" - 6'1" 175 - 185

Specs

Frame Carbon CC
Fork FOX 34SC Float Factory, 120mm
Rear Shock FOX Float Factory, 190x45
Rims Reserve 28|XC 29"
Hubs Front: Industry Nine 1/1, 15x110, Centerlock, 24h
Rear: Industry Nine 1/1, 12x148, XD, Centerlock, 24h
Tires Maxxis Rekon Race 29"x2.4"WT, EXO
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Crankset SRAM X0 Eagle DUB T-Type Crankset, 32t
Shifters SRAM AXS Pod Bridge
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Cassette/Freewheel SRAM X0 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Brakes SRAM Level Silver Stealth 4-Piston
Rotors SRAM CLX, Centerlock, 180mm
Handlebars Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Tape/Grips ESI Chunky Grips
Stem SRAM Atmos 7k, 60mm
Headset Cane Creek 40 IS Integrated Headset
Seatpost FOX Transfer SL Factory Dropper, 31.6 -or- OneUp V2 Dropper Post
Saddle Juliana Carbon Saddle
Pedals Sold Separately
Accessories & Extras OneUp Chainguide
Charger SRAM eTap Powerpack 1 Battery

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Palisade Peach / Small 192219336787 58-24246-175-2-807-161702 210000041504
Gloss Palisade Peach / Medium 192219336800 58-24246-175-3-807-161702
Gloss Palisade Peach / Large 192219336824 58-24246-175-4-807-161702
