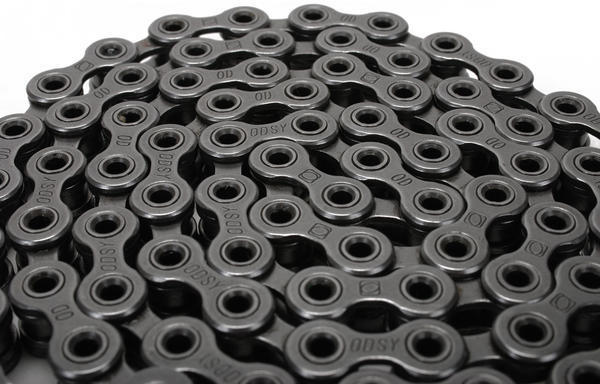

Traditional chain pins are 3mm in diameter. The Key Chains are 5mm, and they are available with a hollow or solid pin assembly. These oversized pins are 4 times stronger than traditional pins, and the chances of bending one, whether the pin is hollow or solid, are essentially zero. The 5mm riveted pins provide added strength, but they also provide a bigger contact surface with the chain’s plates, which makes them harder to push out or bend. The hollow pin assembly, by design, allows for a stronger rivet connection to form during manufacturing, resulting in a stronger chain overall.
Each plate has a low profile and an extra narrow waist that makes it harder to catch the plates at unwanted times. At 1.4mm, the plates are substantially thicker than the plates of any other chain, and they’re also more than 50% harder to bend than the thickest existing 1.2mm chain plates too.
Users can break and re-join the chain with just a 3mm hex key. The chain’s half link plates are taller at the bends to both increase stiffness and minimize stretch. Since the use of a chain breaker to re-join the chain has been eliminated, the pins can retain their original level of tightness from the factory. Also, carrying a spare master link and 3mm allen key in most cases is enough to repair the Key Chain when riding, so lugging around a chain tool is usually unnecessary.
By using material as efficiently as possible, Odyssey has strengthened every component of the chain and kept the weight in the same range as their Bluebird chain.
Stretching of the chain is minimized by using a standard alternating plate pattern and limiting the chain to a single, beefed up half link. This configuration maximizes the lifespan of the sprocket and driver.
- Width: 1/8-inch
|Gray / 81 Links / Hollow Pin / 1/8-inch / Single||630950290031||C-505-GRY|
|Gray / 81 Links / Solid PIn / 1/8-inch / Single||630950290048||C-510-GRY||210000031352|
